Teledyne ICM CMOS X-ray DDA’s
Go-Scan 1510 XR
High definition, user-friendly, lightweight and with real-time feedback. Can be integrated with CP120B or CP160B and CP160D/CP200D/CP225D.
- Real-time image acquisition.
- Automatic IQI recognition.
- Exposure time calculator.
- Image editing and stitching.
- Video recording.
- DICONDE saving option.
Technical Data:
| Active Area | 114 x 145mm (4.5 x 5.7”) |
| Dimensions Head (H x W x D) | 238 x 154 x 25mm (9.4 x 6.0 x 1.0”) |
| Overall Dimension | 238 x 154 x 80mm (9.4 x 6.0 x 3.1”) |
| Detector Head Weight | 1.6kg (3.5lbs) |
| Overall Weight | 3.5kg (7.7lbs) |
| Number of pixels | 2304 x 2940 |
| Frame rate – 1×1(GigE) | 9 fps |
| Pixel pitch | 49.5µm |
| Scintillator | CMOS |
| ADC | 14-bit |
| Interface | Gigabit Ethernet, Wi-Fi |
| Battery | Lithium Ion |
| Power consumption | 15W |
| Operating conditions | -20ºc to +50ºc |
| Battery Performance | Approx. 7 hours continuous operation |
| Active cooling | None |
Go-Scan 1510 HR
High definition, user-friendly, lightweight and with real-time feedback. Can be integrated with CP120B or CP160B and CP160D/CP200D/CP225D.
- Real-time image acquisition.
- Automatic IQI recognition.
- Exposure time calculator.
- Image editing and stitching.
- Video recording.
- DICONDE saving option.
Technical Data:
| Active Area | 102 x 153mm (4 x 6”) |
| Dimensions Head (H x W x D) | 238 x 154 x 25mm (9.4 x 6.0 x 1.0”) |
| Overall Dimension | 238 x 154 x 80mm (9.4 x 6.0 x 3.1”) |
| Detector Head Weight | 1.6kg (3.5lbs) |
| Overall Weight | 3.5kg (7.7lbs) |
| Number of pixels | 1032 x 1548 |
| Frame rate – 1×1(GigE) | 30 fps |
| Pixel pitch | 99µm |
| Scintillator | CMOS |
| ADC | 14-bit |
| Interface | Gigabit Ethernet, Wi-Fi |
| Battery | Lithium Ion |
| Power consumption | 15W |
| Operating conditions | -20ºc to +50ºc/20 to 80% R.H. |
| Battery Performance | Approx. 7 hours continuous operation |
| Active cooling | None |
| IP Rating | IP65 |

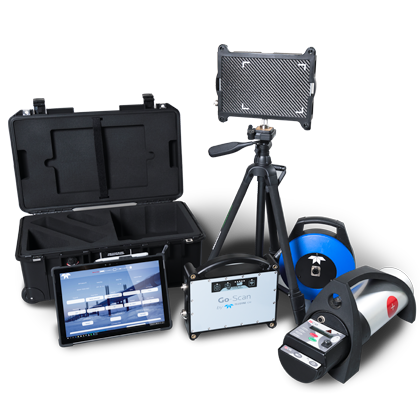

A range of optional products can be supplied with the Go-Scan 1510 XR/HR.
Go-Scan 3025 or 4335
Can be integrated with the ICM CP120B/CP160B or CPxxxD range of X-ray generators.
Technical Data:
| Active Area | Go-Scan 3025: 300 x 250mm (11.8 x 9.8”)
Go-Scan 4335: 430 x 350mm (16.9 x 13.8”) |
| Overall Weight | Go-Scan 3025: 2.6kg (5.7lbs)
Go-Scan 4335: 4.7kg (10.4lbs) |
| Pixel pitch | Go-Scan 3025: 120µm
Go-Scan 4335: 154µm |
| Scintillator | a-Si |
| ADC | 16-bit |
| Interface | Wired, Wi-Fi |
| IP Rating | IP65 |
| Drop Test | 1 metre |
Go-Scan C-View
Real Time X-ray Inspection!
It includes a high speed and high resolution CMOS imaging system, and a battery powered 70kV X-ray tube coupled to provide portable field operation. The video imaging system captures images and displays them on a hand held tablet in real time.
Technical Data:
| Active Area | 102 x 153mm (4 x 6”) |
| Overall Weight | <6.5kg (14.3lbs) |
| Number of pixels | 1032 x 1048 |
| Energy range | 40 to 70kV |
| Video frame rate | Up to 30 fps |
| Pixel pitch | 99µm |
| Scintillator | CMOS |
| Interface | Wired or Wi-Fi |
| Battery | Dewalt Battery |
| X-ray max power output | 12W |
| Operating conditions | -20ºc to +50ºc |
| Battery Performance | Approx. 2 hours continuous operation with 5Ah battery |
| Adjustable arm length | 30 to 65cm (12 to 26”) |
