Magnetic Particle/Dye Penetrant Equipment

As a Magnaflux appointed agent, Euroteck Systems can offer the whole range of Magnaflux MPI and DPI equipment and consumables.

In addition to having access to Magnaflux consumables as other Magnaflux agents offer, Euroteck have over 30 years of experience in providing integrated solutions, particularly with MPI technology, so if you are looking to purchase an automated or semi-automated MPI system, or would like advice on the most suitable equipment to purchase, we have the experience and we can help you with your requirement.

Please note that the list of items shown on this page are not exhaustive, if you do not see something here, then please do not hesitate to contact us to explore the availability of it.

Universal WE MPI Bench

Universal WE MPI Bench key features:

Magnetising Current Capacity AC Contact 200 to 2000 A



AC Coil 1,500 to 15,000 A-turns



Maximum Part Length 900mm
Maximum Part Diameter 450mm
Maximum Part End Diameter 140mm
Maximum Part Weight Capacity 100kg
Available Voltages 480V, 575V
Available Frequencies 60 Hz

Benefits:

  • Double your inspection speed by magnetising parts in a single shot.
  • Fully inspect long parts, up to 900mm without requiring an additional coil.
  • Speed up part processing with a large automated surface shower.

Advanced process control:

  • Maximise consistency between tests with 1,000 customer programmable techniques.
  • Prevent accidental and unauthorised alterations with multiple user profiles and varying tiers for Level 3 to Level 1 access restrictions.
  • Visual alert when produced amperage is 90% or less than set amperage.

Real world dependability for minimal downtime.

  • Siemens PLC provides reliable controls and off-the-shelf replacements.
  • Best-in-class service delivered by Euroteck Service Engineers, all trained at Magnaflux.
  • Minimum downtime with standard spare parts package.

Easy to use and maintain:

  • Simple, user friendly operator interface with touch-screen controls allow quick operational adjustments to be made.
  • External pump system provides fast access for easy cleaning.

For further details on the Universal WE, please visit the Download Page.

UV Lamps

EV6500 – Hand-Held Dual-Light LED UV Lamp

The EV6500 is a hand-held, portable LED UV lamp with built-in white light LEDs for NDT applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.

Designed with broad-beam profile for in-line and hand-held use, the EV6500 will decrease inspection time by improving indication visibility with 7,000 μW/cm2 high intensity UV-A illumination and the widest coverage area in its class.

To improve NDT inspection flexibility, the EV6500 has easy-on white light LEDs for visible flaw location, eliminating the need for a separate flashlight. The white light LEDs provide a large, concentrated flood of visible light of over 150 foot-candles.

EV6000 – Hand-Held LED UV Lamp

The EV6000 LED UV lamp is a portable, hand-held UV lamp for fluorescent NDT applications like fluorescent penetrant testing and fluorescent magnetic particle inspections.

The EV6000 features a uniform beam with no hot-spots and a 23 cm wide beam, 33% wider than the next widest hand-held UV lamp in the industry.

Custom-designed optics provide intense and even UV-A coverage of UV-A to easily identify indications, and an integrated filter ensures minimal visible light emission to improve inspection reliability.

The EV6000 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile. Each unit is shipped with a manufacturer’s certificate of conformance which meets or exceeds all current specifications for use with fluorescent liquid penetrant and magnetic particle testing.

ST700 – Stationary Inspection LED UV Lamp

The ST700 is an inspection-grade overhead LED UV flood lamp with high-intensity UV-A illumination for NDT examinations such as fluorescent penetrant and magnetic particle testing. The ST700 projects an ultra-wide, even beam of UV-A light straight onto the inspection area, allowing for quick examination of parts with minimal part handling.

The high intensity beam makes indications stand out bright and clear, speeding up the inspection process.

The ST700 is certified to NDT standards for LED UV lamps and certified for Aerospace Prime and OEM specifications for emission spectrum and beam profile.

The IP65 aluminium case stands up to harsh environments and a range of mounting and angling options allow it to be set up anywhere in the inspection process; from mag benches to wash stations.

For further details on Magnaflux UV Lamps, please visit the Download Page.

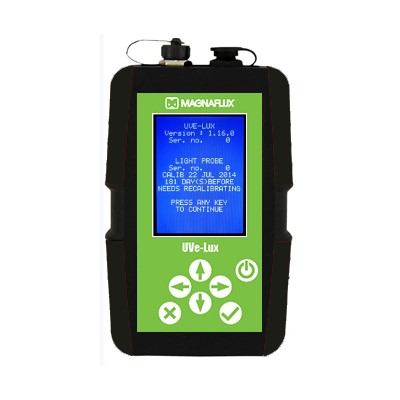

UVe-Lux Meter

The UVe-Lux is a compact, lightweight and robust meter specifically designed for the NDT environment.

It uses a single sensor to measure UV and white light at the same time.

  Visible light UV-A light
Measuring unit Lux or fc µW/cm2
Measuring range 0.1 to 5,000 lux 1µW/cm2 to 10,000 µW/cm2
Resolution 0.1 lux 1µW/cm2
Accuracy <5% <5%

For further details on the UVe-Lux Meter, please visit the Download Page.

MPI Yokes

Y-2 AC Electromagnetic Yoke

The Y-2 is an AC electromagnetic yoke, ergonomically designed to improve productivity and reduce operator arm and wrist fatigue. The yoke generates a strong AC magnetic field for the detection of surface indications during magnetic particle testing.

Lightweight with an ergonomic grip and trigger, the Y-2 is designed for the rugged demands of field inspection. Featuring a field swappable cord and isolated trigger switch; the Y-2 is easily serviceable because a severed cord should not stop a job from getting done.

A super bright LED attachment is available as an optional item to help illuminate the inspection area while simultaneously magnetizing the part.

Y6 AC Electromagnetic Yoke

The Y6 is a durable, lightweight, encapsulated AC yoke designed for reliable one-person inspection. It is easy to use single-handed and its articulated legs to contour to any part shape, allowing you to inspect components of different sizes and shapes.

Featuring sealed chemical-resistant construction and a robust strain-relieved power cord for field use, the Y6 is ideal for inspection of welds and other remote testing.

  • Sealed, durable construction
  • Chemical and abrasion resistant
  • Exceeds ASTM lifting specifications
  • Individual serial number on each yoke
  • Articulated, double-jointed legs
  • Demagnetising capability

Y7 AC/DC Electromagnetic Yoke

The Y7 is a durable, high-strength AC/DC magnetic yoke designed to detect surface and sub-surface indications in the most rugged applications.

Featuring sealed chemical-resistant construction, articulating legs to contour to any part shape and robust strain-relieved 3.7m cord for field use, the Y7 is ideal for inspection of welds and other remote testing.

Solid-state controls allow the operator to use AC magnetic fields for surface indications or DC magnetic fields for sub-surface indications to meet all inspection needs.

  • Sealed, durable construction
  • Chemical and abrasion resistant
  • AC and DC operation options for surface and sub-surface inspection
  • Exceeds ASTM lifting specifications
  • Individual serial number for each yoke

Y8 DC Battery-powered Electromagnetic Yoke

The Y8 is a battery-powered, DC electromagnetic yoke designed to stand up to the most rugged applications. Its compact battery pack provides a full 8-hour shift of inspection power, making it ideal for inspection in the field and remote locations.

  • Chemical and abrasion resistant
  • Exceeds ASTM lifting specifications
  • Articulated, double-jointed legs.
  • Sealed, durable, lightweight construction.
  • True portability with compact battery pack
  • Individual serial number on each yoke
  • Solid state controls for maximum safety and reliability.

For further details on Magnaflux MPI Yokes, please visit the Download Page.

Dye Penetrant Equipment

Dye Penetrant equipment can range from the basic solvent removable visible penetrant system using aerosols to a complete fluorescent water washable or post emulsifiable penetrant line incorporating immersion tanks, wash area, drying oven and inspection booth.

Euroteck Systems work with ATH NDT, for the supply of bespoke penetrant systems. ATH are a company based in Kelbrook, near Barnoldswick, Lancashire, who are a long-established manufacturer of specialised dye penetrant and chemical processing lines, who have supplied several high-profile aerospace and NADCAP approved companies.

For more information, please visit: https://www.athndt.uk/ or contact Euroteck Systems directly to discuss your requirement.

Consumables

Euroteck Systems hold some Magnaflux consumables in stock at our Tamworth factory unit. Please contact sales@euroteck.co.uk for a quotation.

Please do not hesitate to contact Euroteck Systems if you’d prefer to discuss your MPI or DPI requirements
